Tactical Model (Illuminated)

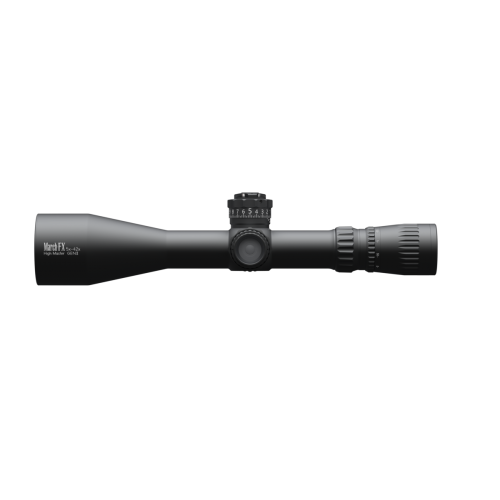

March -FX Wide Angle 5-42x56mm Genll in MOA
This 5-42x56mm Genll scope is developed for serious competition shooters, enthusiasts and hunters who demand the utmost in optical/mechanical performance. 5-42x56mm has the widest angle eyepiece among all March Scopes 26° (30% more than our standard models) offering enhanced FOV throughout the 8. 4x magnification range.

(*NOTE)
Shuriken lock turrets which is a standard for illuminated 5-42x56 Genll can be replaced with writable turrets for a custom fee when placing a new order.

Features of the D42HV56WFIMAX-G2
・8.4X Zoom in FFP, MOA
・34mm diameter body
・56mm objective lens
・Wide Angle eyepiece : 26 degrees
・Temperature Anti-Drift Lens System
・High Master lens system (Super ED lenses)
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Shuriken lock Elevation and Windage turrets
・Lockable Side focus turrets
・Fast focus eyepiece
・6 level illumination module
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating

For the Generation ll of the popular 5-42x56mm scope, we have upgraded the lever locking turrets of the elevation & windage to the latest shuriken locking turrets. (Shuriken are star shaped throwing knives used by Ninjas in Japan. Red is locked, white is unlocked. *Due to the structure difference of the scope, we are not able to replace the current lock lever turrets to the shuriken lock turrets.) The image quality has also been further refined especially near the maximum elevation amount.

Multi-turn 25MOA elevation turret with 130MOA total travel adjustment for ELR.
Locking elevation, windage and parallax with easy zero stop.
Fast focus diopter system will enable you to adjust from -2D to +2D in 1 revolution.
Eyepiece diopter can be rapidly adjusted.

5-42x56mm employs "Temperature Anti-Drift Lens System" and the "High Master lens system".
"Temperature Anti-Drift Lens System"
In the latest optical systems, a new lens material has been developed to accommodate changes in environmental temperature by altering the refractive index of the lenses. This new lens material has been adopted to create a more stable lens system that naturally adapts to changes in temperature to maintain focus and clarity over a wide range of conditions.

"Super ED lenses"
Super ED lenses are an improved ED lens element with optical characteristics even closer to pure fluorite crystal lens elements. By incorporating Super ED lenses (High Master lens system), we are able to reduce the chromatic aberration.
