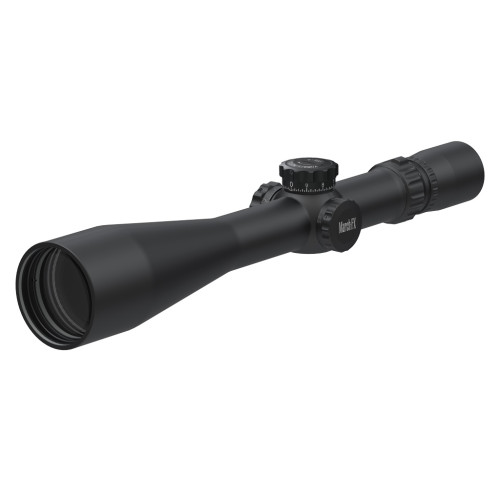

March FFP 5-40x56mm ILLUMINATED FMA-1 MOA Calibrated First Focal Plane Reticle
With your choice of 1/4 or 1/8 MOA clicks - Exposed Tactical Knobs with Zero-Set
D40V56FIMA Series
Note: You must select one item for all Available Options marked with a red asterisk *
All 5-40x56 March scopes include the following options:
- Exposed Tactical Knobs
- Zero-Set Device
- Now includes the extended Zoom Lever
- Choose between 1/4 and 1/8 MOA clicks.
- Side Focus Dial that focuses to 10 yards
- Metal Sunshade
- Front and Rear Flip Up Dust Caps
- Battery (for illuminated reticle models)
Technical Data
Low High Magnification 5x 40x Effective Lens Diameter 56mm Body Tube Diameter 34mm Exit Pupil -- 1.4mm
(0.06inch) Field of View (real) degree 4.0° 0.5° ft/100yd 21.0ft 2.6ft m/100m 6.98m 0.87m Eye Relief 96-100mm
(3.78-3.94inch) 92-98mm
(3.62-3.86inch) 1 Click Adjustment 1/4MOA or 1/8 MOA Elevation Travel 76MOA Windage Travel 38MOA Focus Distance 10yd - infinity Reticle FMA-1 In the box Flip Caps (Objective and Eyepiece)
Sunshade
Lens Cloth
MD disk
Fast Lever Scope Size A 387mm (15.24inch)
B 155mm (6.1inch) C 64mm (2.52inch) D 41mm (1.61inch) E 144mm (5.67inch) F 88mm (3.46inch) G 66mm (2.6inch) H 52mm (2.05inch) Weight 890g (31.39oz)
| Low | High | ||
|---|---|---|---|
| Magnification | 5x | 40x | |
| Effective Lens Diameter | 56mm | ||
| Body Tube Diameter | 34mm | ||
| Exit Pupil | -- | 1.4mm (0.06inch) | |
| Field of View (real) | degree | 4.0° | 0.5° |
| ft/100yd | 21.0ft | 2.6ft | |
| m/100m | 6.98m | 0.87m | |
| Eye Relief | 96-100mm (3.78-3.94inch) | 92-98mm (3.62-3.86inch) | |
| 1 Click Adjustment | 1/4MOA or 1/8 MOA | ||
| Elevation Travel | 76MOA | ||
| Windage Travel | 38MOA | ||
| Focus Distance | 10yd - infinity | ||
| Reticle | FMA-1 | ||
| In the box | Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth MD disk Fast Lever | ||
| Scope Size | A | 387mm (15.24inch) | |
| B | 155mm (6.1inch) | |
| C | 64mm (2.52inch) | ||
| D | 41mm (1.61inch) | ||
| E | 144mm (5.67inch) | ||
| F | 88mm (3.46inch) | ||
| G | 66mm (2.6inch) | ||
| H | 52mm (2.05inch) | ||
| Weight | 890g (31.39oz) | ||
5-40x56mm FFP - ILLUMINATED FMA-1 MOA Calibrated Reticle + D40V56FIMA
- Brands March Scopes by Deon Optical
- Product Code:D40V56FIMA March-FX 34mm
- Availability:Built To Order Payment Required
- $4,240.00
-
$3,259.00
