• 4.5-28x52mm Super ED Glass Wide Angle Shuriken Locking 1/10 Mil Clicks Exposed Tactical Knobs March D28HV52WFMLX


With the discounted $5 Rush Build option selected (Normally $200) your scope will be built in about a month from the order date. Cut up to 3 months off the delivery window!

FREE shipping - NO Sales Tax* - Shipping by overnight air from Japan and 2 day UPS shipping to you, all tariffs and taxes* are included in the price at checkout.

*Note: We will pay half of the Utah Sales tax for orders shipping to Utah.
Added Shipping Fee for AK HI


BECOME A MARCH DEALER!
We are the sole factory authorized sub-dealer distributor for March scopes in the USA. As an authorized March sub-dealer, you will be able to buy March products at the same dealer/distributor pricing as all USA March dealers and distributors.

Please contact us by phone / text at 385-200-1950 or via email: sales@longrangesupply.com for more information.




D28HV52WFMLX

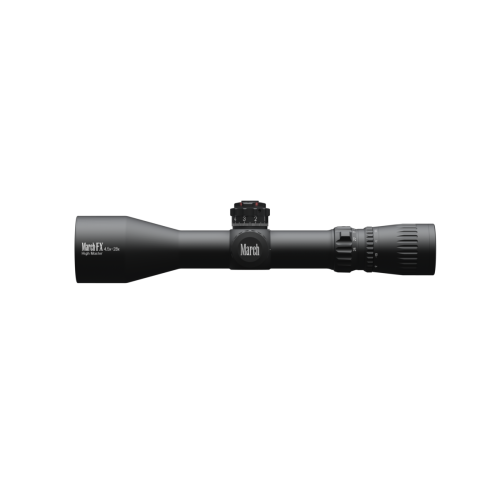

March-FX "Wide Angle" 4.5-28x52mm Riflescope with lockable Shuriken turrets

Tactical Model (Non Illuminated)

March-FX "Wide Angle" 4.5-28x52mm Riflescope with lockable Shuriken turrets
This scope was developed with practical precision shooting competitors in mind, but ease of use and compact configuration make it equally at home on nearly any shooting platform. The short length (318mm; 12.5”) and light weight (853g; 30.09oz) of the March-FX 4.5x-28x52mm is exceptional. The new turrets are Shuriken shaped lockable elevation and windage turrets. “Shuriken” is a star shaped throwing knife used by Ninja. Red is for locked state and white is for unlocked state. "X" in the model name stands for the Shuriken lock.

・6.2X Zoom in FFP, MIL
・34mm diameter body
・52mm objective lens
・Wide Angle eyepiece : 25 degrees
・Temperature Anti-Drift Lens System
・High Master lens system (Super ED lenses)
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Fast focus eyepiece
・Shuriken lock elevation and windage turrets
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating

"Temperature Anti-Drift Lens System"
In the latest optical systems, a new lens material has been developed to accommodate changes in environmental temperature by altering the refractive index of the lenses. This new lens material has been adopted to create a more stable lens system that naturally adapts to changes in temperature to maintain focus and clarity over a wide range of conditions.

"Wide Angle Eyepiece"
25 Degree Wide Angle Eyepiece will enhance FOV throughout the 6.2 magnification range. Compared with our standard scopes with 20 degree, this is wider by 25%.

"Super ED lenses"
By incorporating Super ED lenses (High Master lens system), we are able to reduce the chromatic aberration.

"Fast focus eyepiece"
The diopter adjustment mechanism has been improved so you can adjust the eyepiece to your eye faster than ever before.

"Durability"
All March scopes are immensely strong to endure any severe condition. They are Argon-filled for internal stability and are fully weather-resistant and waterproof to at least 4 meters, and have passed impact tests of up to 1000G. The walls of the 34mm tubes are 4mm thick. Our 34mm body tube is simply just to make the scope extra strong. With its 4mm thick walls and the overall design, March-X and March-FX models are among the toughest riflescopes in the world. 4.5-28×52 FFP scope is categorized under the March-FX models. “X” in the classification name stands for 34mm body tube and “F” in the classification name stands for FFP (first focal plane).

You can also check our previous article for your reference. https://marchscopes.com/news/7170/


Dials

D28HV52WFMLX (MIL, Tactical, Shuriken lock)

0.1 MIL Type

1 Click Adjustment : 0.1MIL (1cm @100m)
10 MIL turret revolution (100cm @100m)
0-set on Elevation turret

Shuriken lock elevation and windage turrets. “Shuriken” is a star shaped throwing knife used by Ninja. Red is for locked state and white is for unlocked state.


Reticles


Technical Data


Low High
Magnification 4.5x 28x
Effective Lens Diameter 52mm
Body Tube Diameter 34mm
Exit Pupil
1.86mm (0.73 inch)
Field of View (real) degree 5.56° 0.892°
ft/100yd 29.1ft 4.67ft
m/100m 9.7m 1.56m
Eye Relief 70‐93.7mm 72‐90mm
1 Click Adjustment 0.1MIL
Elevation Travel 30MIL
Windage Travel 20MIL
Focus Distance 10yd - infinity
Reticle FML‐PDK
FML‐LDK
In the box Flip Caps (Objective and Eyepiece)
Sunshade
Lens Cloth
MD disk
Middle focus wheel
Fast lever
Hex key
Scope Size A 318mm (12.5inch)
size B 129mm (5.0inch)
C 60mm (2.4inch)
D 46mm (1.8inch)
E 93mm (3.7inch)
F 96mm (3.8inch)
G 42mm (1.6inch)
H 49mm (1.9inch)
Weight 855g (30.16oz)



4.5-28x52mm Super ED Glass Wide Angle Shuriken Locking 1/10 Mil Clicks Exposed Tactical Knobs March D28HV52WFMLX

  • Brands March Scopes by Deon Optical
  • Product Code:D28HV52WFMLX March-FX High Master Wide Angle 34mm
  • Availability:Built To Order Payment Required
  • $3,869.00
  • $3,676.00
