With the discounted $5 Rush Build option selected (Normally $200) your scope will be built in about a month from the order date. Cut up to 3 months off the delivery window!

FREE shipping - NO Sales Tax* - Shipping by overnight air from Japan and 2 day UPS shipping to you, all tariffs and taxes* are included in the price at checkout.

*Note: We will pay half of the Utah Sales tax for orders shipping to Utah. Added Shipping Fee for AK HI

1-10x24mm Shorty D10SV24FDIMLX

(Dual Focal Plane)

Tactical Model (Daylight Visible Illumination)

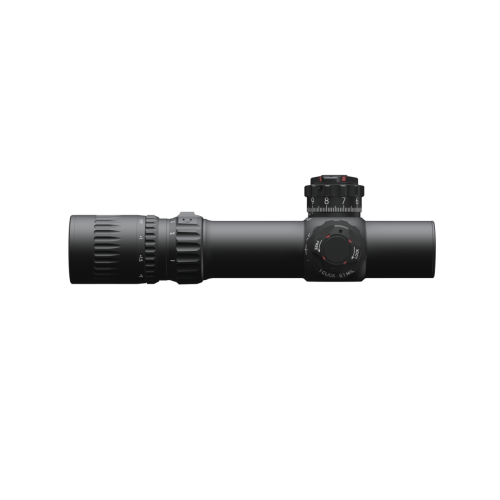

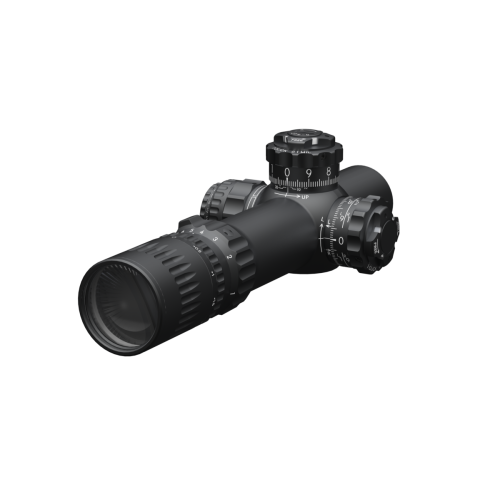

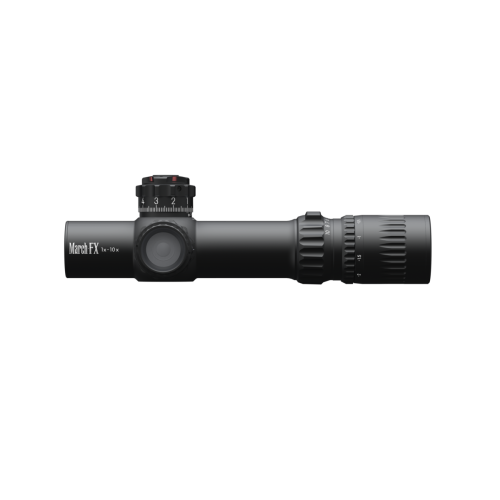

New for 2023! March-FX 1-10x42mm Shorty Riflescope with Shuriken lockable turrets

0.1 MIL Clicks

1 click adjustment : 0.1MIL (1cm @100m)
10 MIL turret revolution (100cm @100m)
0-set on Elevation turret

Technical Data

		Low	High
Magnification		1x	10x
Effective Lens Diameter		24mm
Body Tube Diameter		34mm
Exit Pupil		8.6mm(0.34inch)	2.4mm(0.094inch)
Field of View (real)	degree	19.2°	1.92°
	ft/100yd	101.5ft	10.1ft
	m/100m	33.83m	3.35m
Eye Relief		72‐102mm	72‐100mm
1 Click Adjustment		0.1MIL
Elevation Travel		50 Mil
Windage Travel		25 Mil
Focus Distance		10yd - infinity

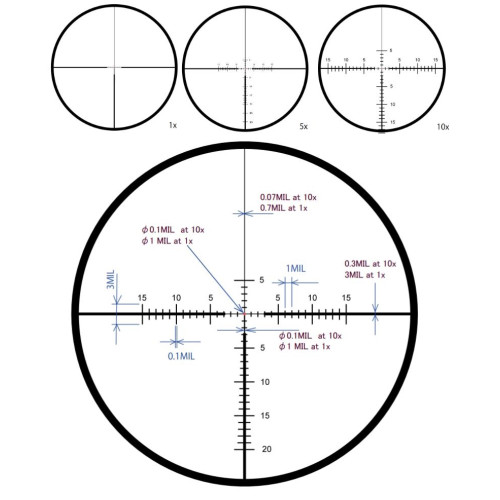

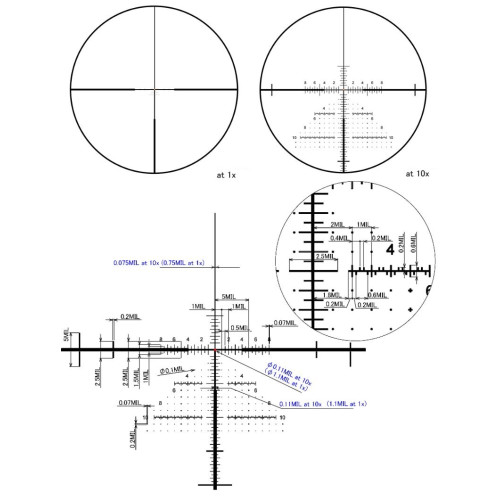

Reticle		DR-1F DR-TR1F
In the box		Flip caps (Objective lens, Eyepiece) Fast lever Lens cloth Hex key
Scope Size	A	215mm (8.46inch)
	B	130mm (5.12inch)
	C	34mm (1.34inch)
	D	41mm (1.61inch)
	E	0 (null)
	F	85mm (3.35inch)
	G	40mm (1.57inch)
	H	51mm (2.01inch)
Weight		540g (19.0oz)

・10X Zoom in FFP, MIL
・Now with uniform 34mm diameter tube in front of and behind knobs.
・24mm objective lens
・Focus from 10 yard to infinity
・Dual reticle (best of both FFP and SFP reticles)
・Daylight bright fiber dot illumination
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Fast focus eyepiece
・Shuriken lock elevation and windage turrets

The new turrets are Shuriken shaped lockable elevation and windage turrets. “Shuriken” is a star shaped
throwing knife used by Ninja. Red is for locked state and white is for unlocked state. "X" in the model name
stands for the Shuriken lock.

At Deon, we are very proud of our technical expertise that allowed us to design and create a scope with a 10X zoom range and a dual reticle. The technical and assembly challenges with respect to dual reticles are extreme and we are pushing the limits of the state of the art in reticle design. The tolerances required in assembly of the "Dual reticle" are such that very few are able to do it, especially with a 10X zoom ratio. Any deviation from these extremely tight tolerances will be visible in the 10X zoom range. The assembly of this scope, like all our other offerings, is meticulous. This
